|C14, 2.5x Powermate, Flea3, Astronomiks IR filter
FireCapture for capture (highly recommended)
AVIStack for processing
Mouseover for Lablels
This was done in large part as a resolution test.
To check the diameter of craters A and B I used the LROC mapping tool found here:
Jan 13 2013
|measurement of the crater diameter and, using the up-sun and down-sun walls as a line-pair proxy allows you to test
resolution. This site, and Virtual Moon (http://ap-i.net/avl/en/download) are useful for checking that the "crater" you are
meauring actually is real and to determine the diameter of the crater, wall to wall

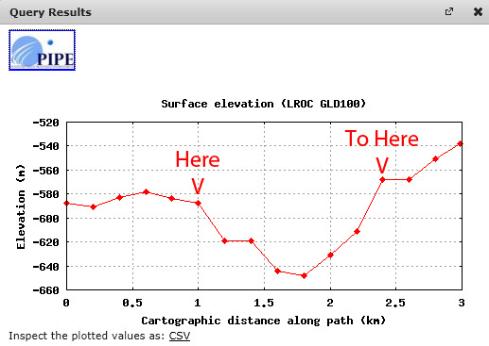

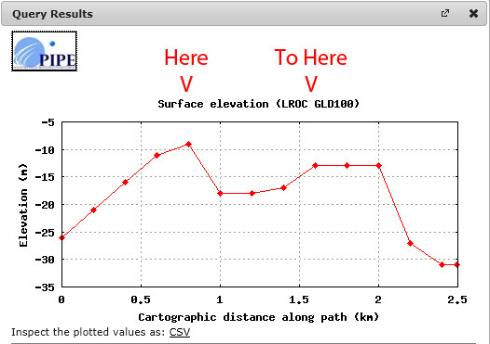

Craters A and B as in mouseover have the profiles shown below.
|The focal length (measured) is about 9.7 meters. The earth-moon distance on Jan 13 2013 about 363455 km (surface to surface) so "A", a
1.4 Km diameter crater would be about 0.79 arc sec and B, an 0.8 Km crater about 0.45 arc sec. I am pretty confident I am resolving down
to 0.45 arc sec. Do you see smaller craters that can be confirmed by LROC or Virtual Moon?
Dawes limit for a 14" C14 is 0.33 arc sec
